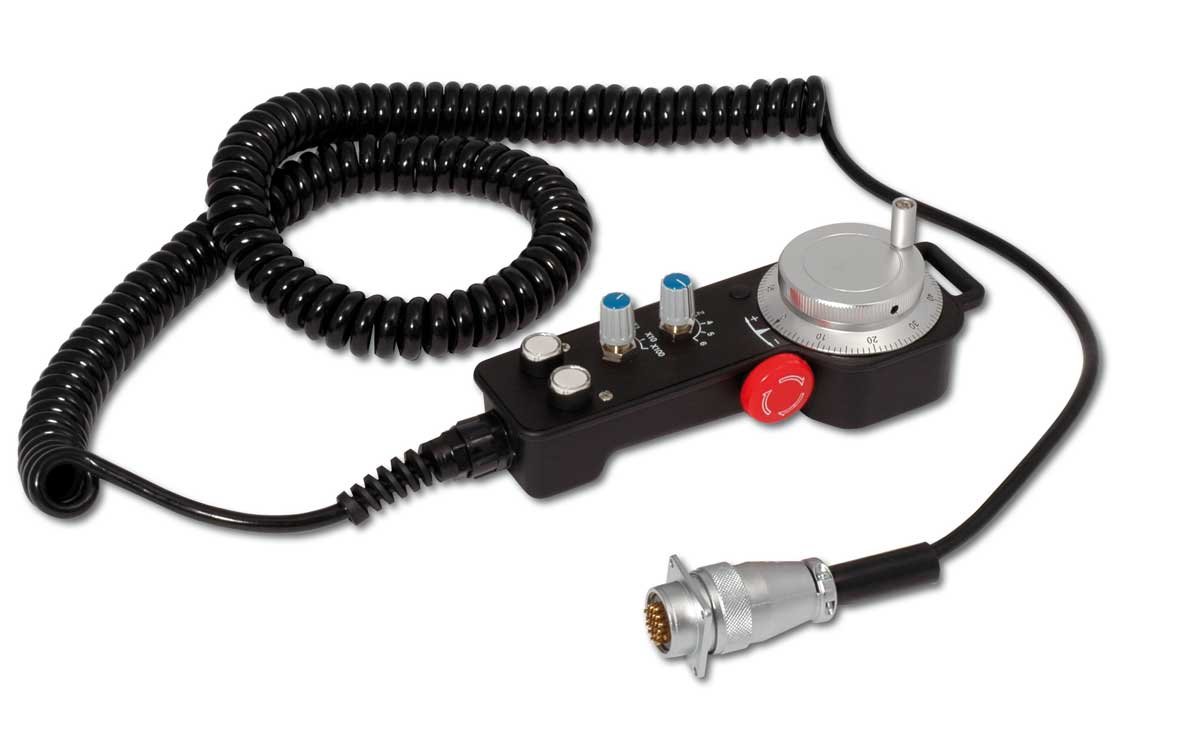

Description

Technical Data:

MPG with 100 Increments

6 Position Axis Rotary Switch

3 Position Feed Multiplier Rotary Switch

2 Programmable Push Buttons

Emergency-Stop Push Button

Coiled Cord

Packing List:

MPG Pendant

MPG Bracket

26 Pin Female Connector

Tested

Description of Signals:

Layout of Connector:
